STEEL-CASTER™ COMPACT
STAINLESS STEEL HOPPER SPREADERS
Capacity: 0.35 & 0.7 cu yd
Materials: Salt, Sand & Fine De-ice Materials
Delivery System: Chain
BUILT WITH YOUR TRUCK IN MIND
.
Make easy work of snow and ice with a hopper spreader that’s purpose-built for half-ton and light-duty trucks. Designed in both 0.7 and 0.35 cu yd capacities, the all-new STEEL-CASTER™ stainless steel hopper spreaders have all the power and performance of larger FISHER® STEEL-CASTER hopper spreaders, but in a more compact size to better accommodate your smaller spaces and jobs.
UNIQUE FEATURES
.
DUAL ELECTRIC MOTORS
A fully enclosed 12-volt electric, ⅓ HP motor is mounted inside a sealed housing, protecting it from corrosion.
DUAL ELECTRIC MOTORS
DUAL VARIABLE-SPEED CONTROL
Enhanced dual variable-speed control allows you to precisely match material delivery and spread patterns to conditions. Four standard accessory buttons and a dedicated blast button provide optimum in-cab efficiency.
DUAL VARIABLE-SPEED CONTROL

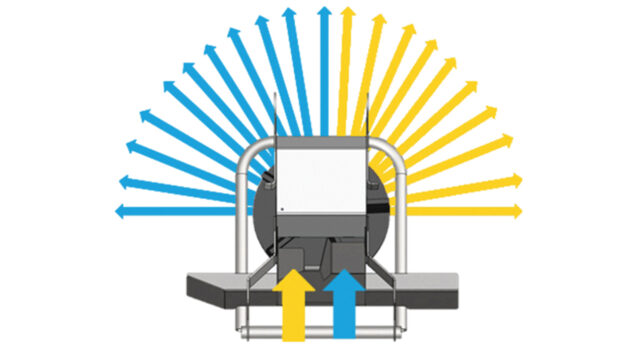

INNOVATIVE CHUTE DESIGN
Baffles within the chute deliver a consistent spread pattern that reduces material waste. By directing material to precise points on the spinner, it helps to cast it away from the truck rather than onto the back of your bumper.
INNOVATIVE CHUTE DESIGN

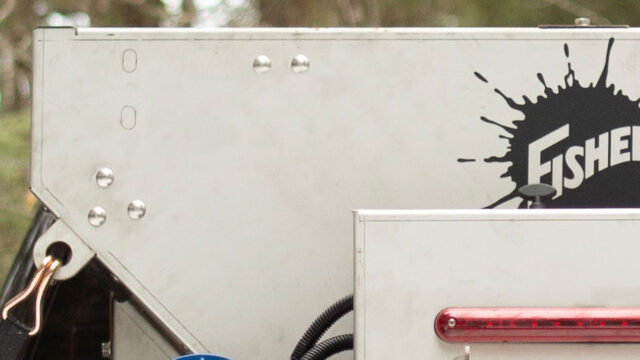

CORROSION-RESISTANT HOPPER
The low-maintenance, stainless steel, riveted construction provides longevity and protection against stress.
CORROSION-RESISTANT HOPPER

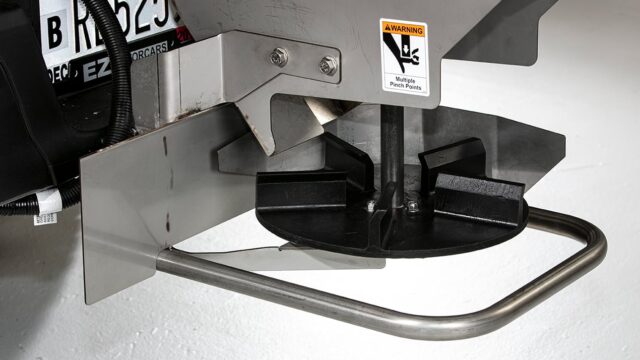

SHUTTER DEFLECTOR
The easy-to-adjust circular shutter deflector allows directional spreading, providing optimal material control, while maintaining even coverage.
SHUTTER DEFLECTOR

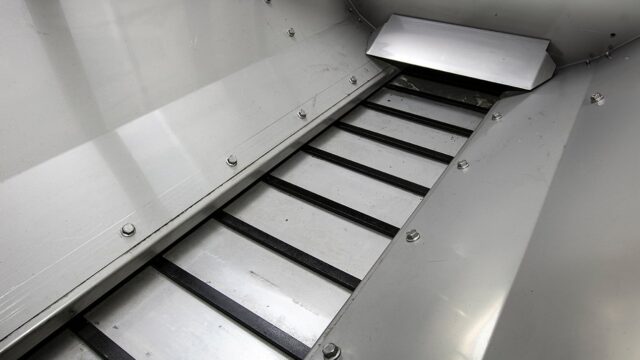

MATERIAL DELIVERY
Features a 11 ½”-wide pintle chain conveyor system that moves material consistently and smoothly to prevent bridging.
MATERIAL DELIVERY

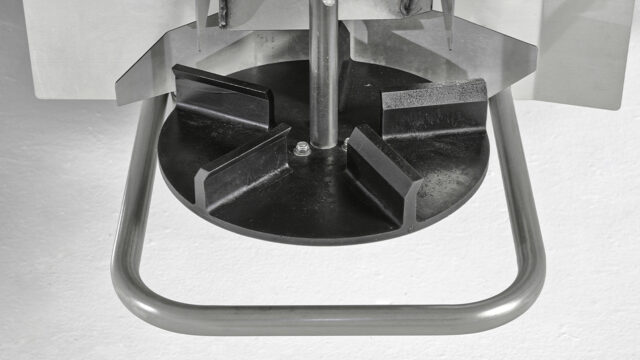

SPINNER
An extra large 12″ polyurethane spinner delivers a spread pattern of up to 30′ and provides long-lasting, corrosion-free performance.
SPINNER

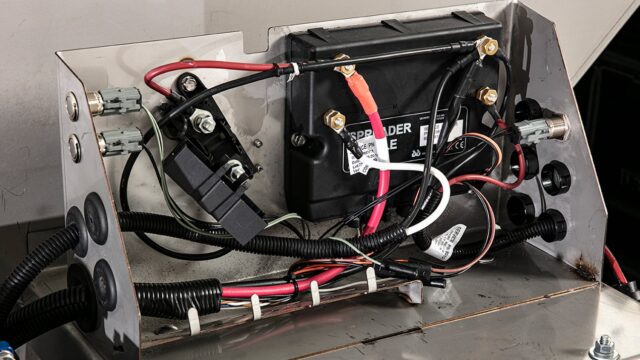

ACCESSORY INTEGRATION
Conveniently connect accessories directly into the fully enclosed accessory hub mounted in the back of the hopper. Accessories automatically integrate with the hopper control without having to run additional wires from the front of the vehicle.
ACCESSORY INTEGRATION

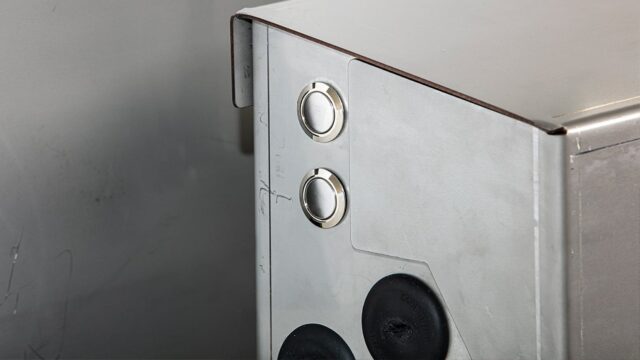

DUMP & WORK LIGHT SWITCHES
Operators can safely offload material by using the rear mounted conveyor dump switches. A third switch is also provided so that an accessory work light my be conveniently controlled from not only the cab but also the rear of the hopper.
DUMP & WORK LIGHT SWITCHES

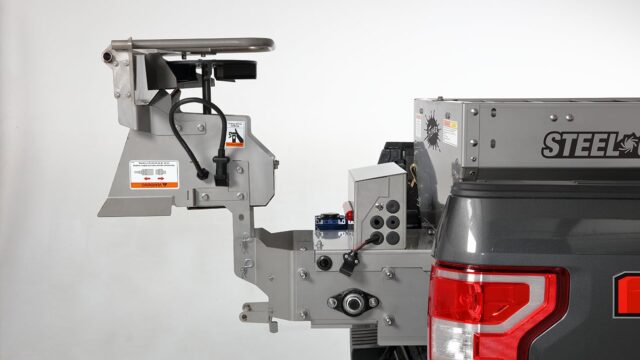

FLIP-UP CHUTE
Provides convenient access to the hitch, better ground clearance and easy clean-out.
FLIP-UP CHUTE

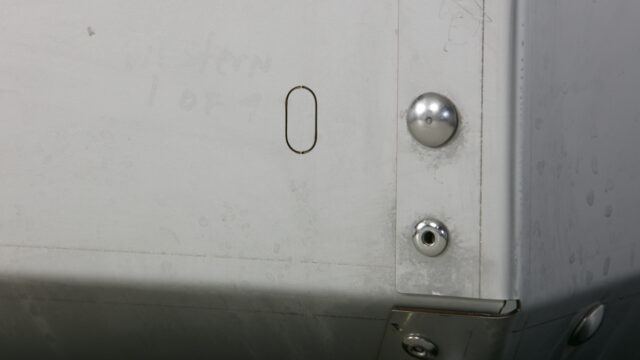

ACCESSORY KNOCK-OUTS
Hoppers feature knock-out holes for plug and play integration of certain accessories.
ACCESSORY KNOCK-OUTS

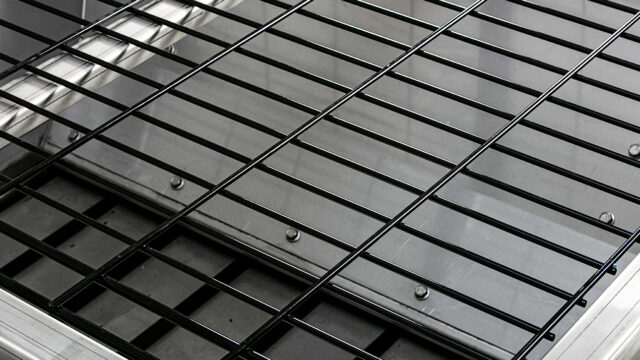

TOP SCREEN
A steel top screen comes standard, which helps break up large chunks of de-icing material during the loading process to prevent clogging and bridging during spreader operation.
TOP SCREEN
FLEET FLEX
The STEEL-CASTER™ hopper spreader is designed with FLEET FLEX technology for easy interchangeability between electric hopper spreaders without having to change the wiring or the controls.
FLEET FLEX
MOUNTS
.
RATCHET STRAPS (REQUIRED/STANDARD)
Positive locking mount with bolt-down kit and ratchet-strap assist provides additional in-bed stability, security, and simplifies installation for multiple vehicle types. (Hopper spreaders require bolting to the UTV bed or truck frame for proper operator safety.)
RATCHET STRAPS (REQUIRED/STANDARD)
PRODUCT SPECIFICATIONS
.
| Model | 0.35 cu yd |
|---|---|
| Vehicle Compatibility | UTVs, ½, ¾ or 1-Ton Pickup Truck |
| Material Compatibility | Bagged Salt / Ice Melt, Bulk Salt, Bulk Sand & 50/50 Mix |
| Capacity | 0.35 cu yd |
| Spreading Width | Up to 30 ft |
| Approx. Weight (Empty) | Dual 12V DC Sealed Motors (235 lb) |
| Overall Dimensions (LxWxH) | 57″ x 38″ x 46″ |
| Hopper Dimensions (LxWxH) | 30″ x 38″ x 26″ |
| Body Side Length | 30″ |
| Min. Bed Length Required | 30″ |
| Hopper Construction | 16 ga SS |
| Conveyor Width | 11 ½” |
| Spinner Size | 12″ |
