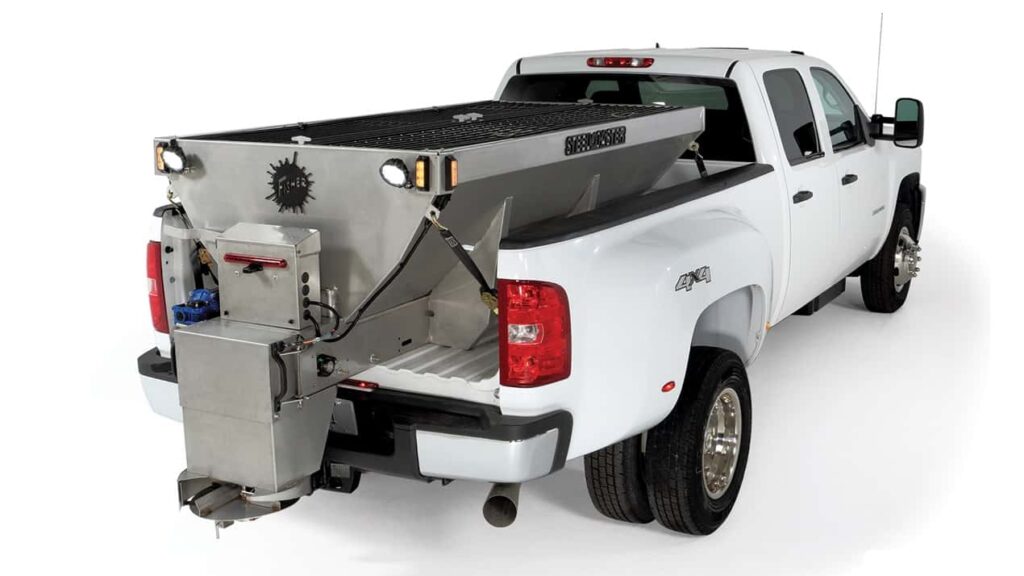

STEEL-CASTER™
STAINLESS STEEL HOPPER SPREADERS
Capacity: 1.5 - 6.0 cu yd
Materials: Salt, Sand & Pre-Wet*
Delivery System: Chain
ENGINEERED TO OWN THE ICE
.
The FISHER® STEEL-CASTER™ stainless steel hopper spreaders were designed for efficiency and engineered for durability. Built with the experience of more than six decades of battling tough New England storms, the STEEL-CASTER hopper spreaders are available in six sizes, with more standard features and the latest advancements in technology, resulting in maximum material control and minimal waste.
UNIQUE FEATURES
.
DUAL ELECTRIC MOTORS
The two high-torque 12-volt electric motors provide quiet, reliable and independent control over the conveyor and spinner mechanisms. The spinner motor is sealed inside a weather-resistant housing, protecting it from corrosion, while the conveyor motor is completely sealed from the elements.
DUAL ELECTRIC MOTORS
HYDRAULIC POWER
The STEEL-CASTER™ stainless steel hopper spreader is available with hydraulic power. With the most available power in its class, the hydraulic powered motor option offers dual variable speed control and reliable operation.
HYDRAULIC POWER

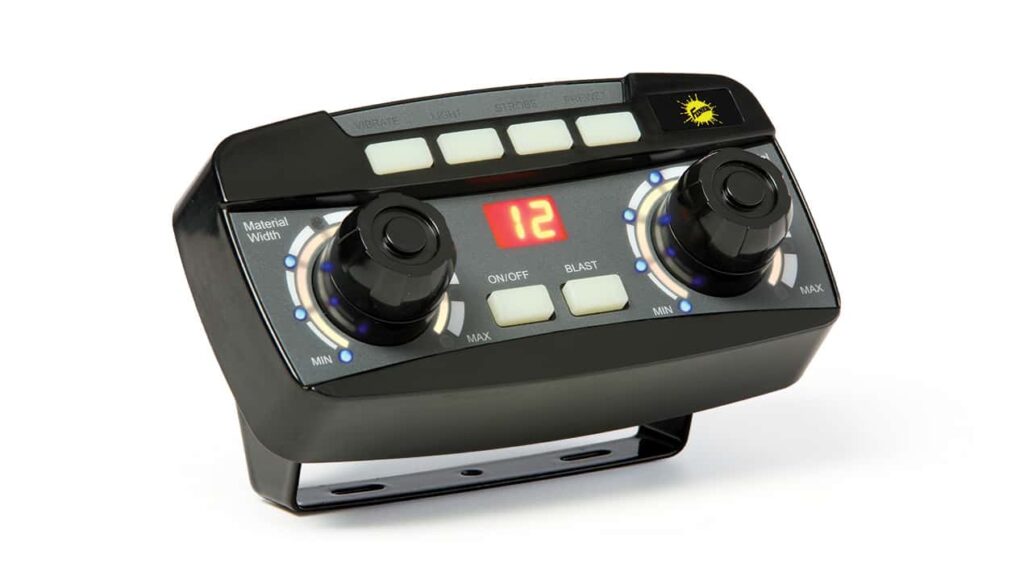

CONTROLS
Enhanced dual variable-speed control allows you to precisely match material delivery and spread patterns to conditions. Four standard accessory buttons and a dedicated blast button provide optimum in-cab efficiency.
CONTROLS

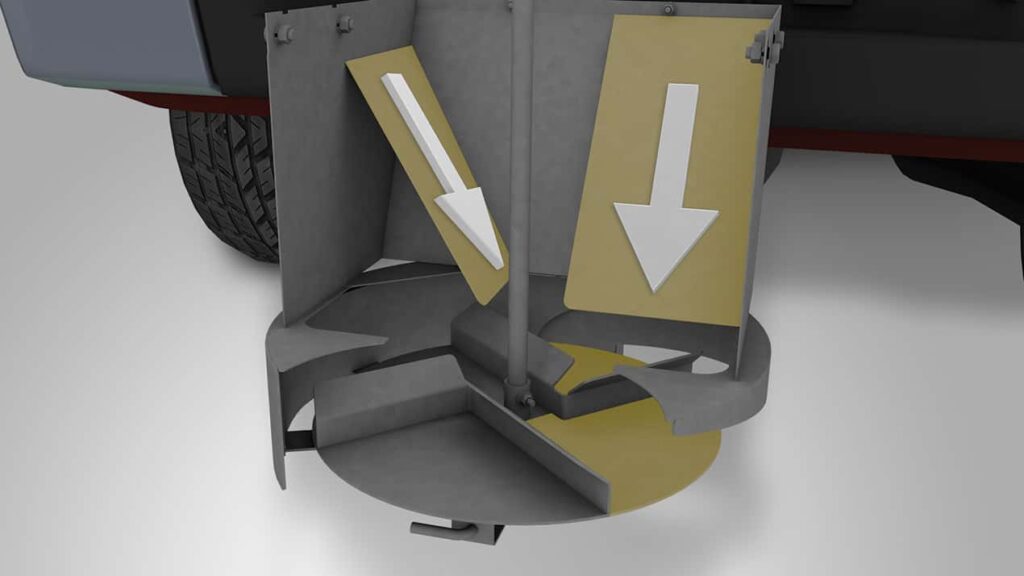

INNOVATIVE CHUTE DESIGN
Baffles within the chute deliver a consistent spread pattern that reduces material waste. By directing material to precise points on the spinner, it helps to cast it away from the truck rather than onto the back of your bumper.
INNOVATIVE CHUTE DESIGN

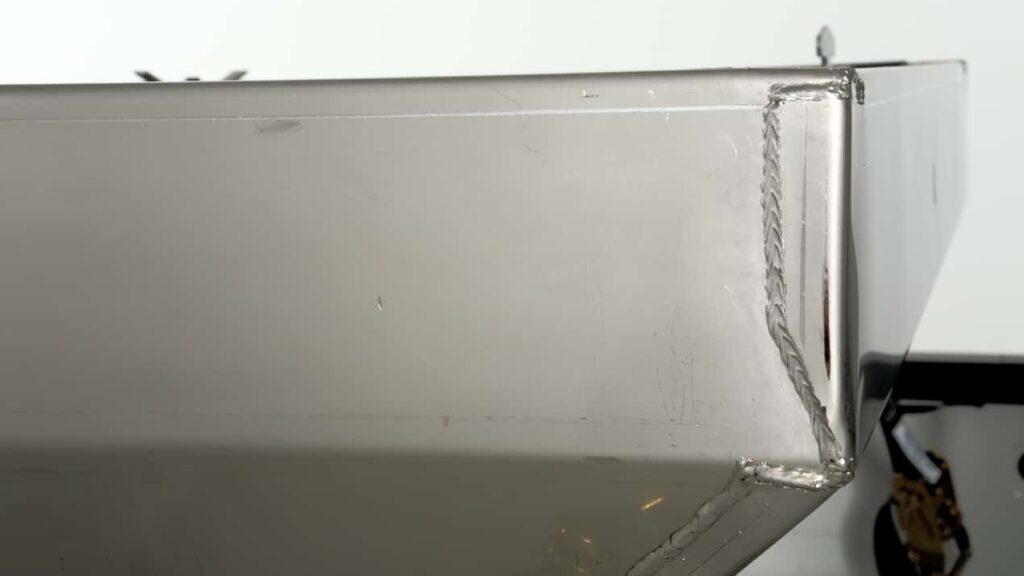

CORROSION-RESISTANT HOPPER
Constructed from maintenance-free, corrosion-resistant stainless steel, the hopper is reinforced with welded joints, which wrap around for long-life and protection against stress.
CORROSION-RESISTANT HOPPER

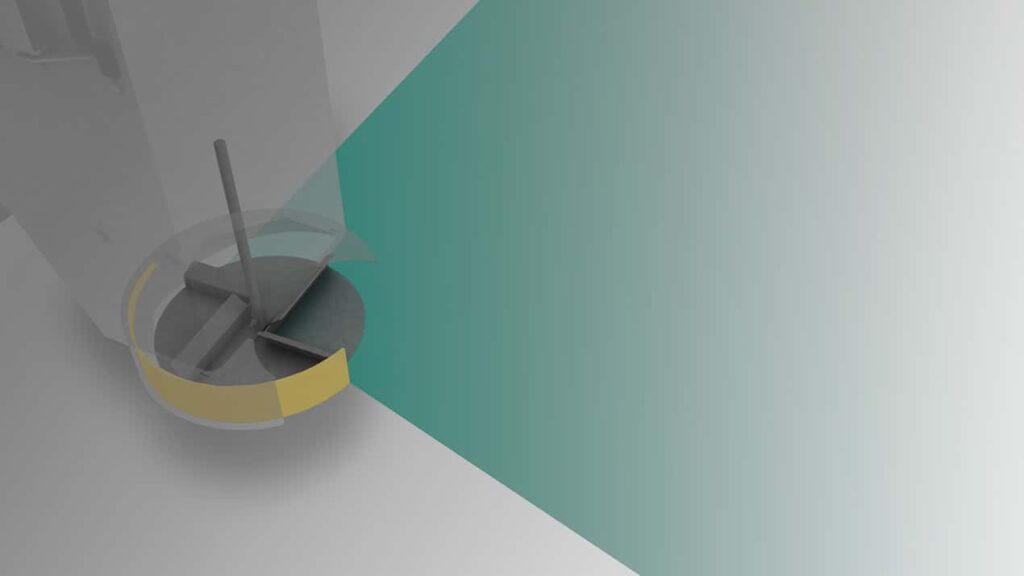

SHUTTER DEFLECTOR
The easy-to-adjust circular shutter deflector allows directional spreading, providing optimal material control, while maintaining even coverage.
SHUTTER DEFLECTOR

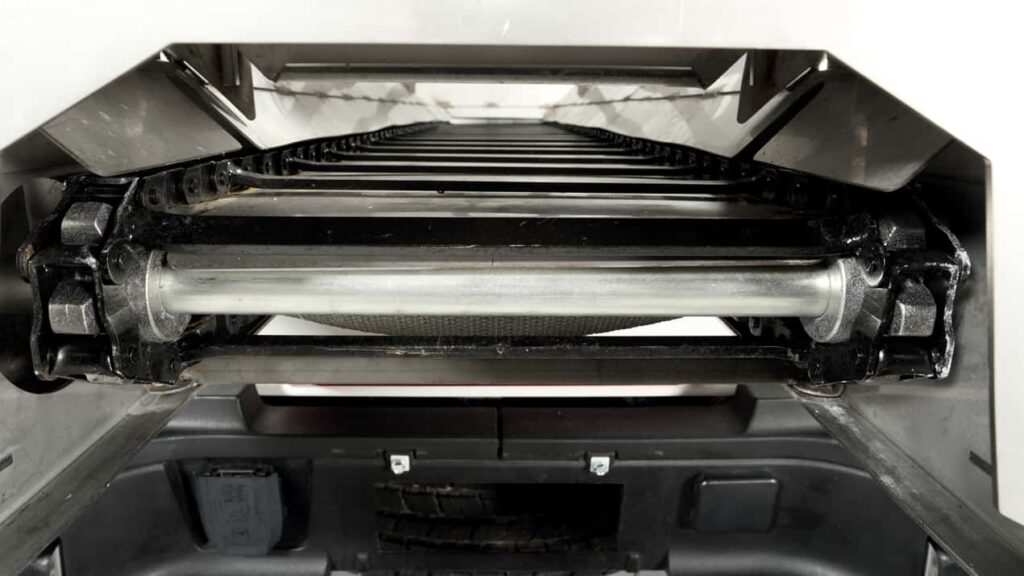

MATERIAL DELIVERY
One of the widest in the industry, the 15 ½” pintle chain conveyor moves more material consistently and smoothly to help reduce bridging. Corrosion-resistant stainless steel guides provides extra protection and durability.
MATERIAL DELIVERY

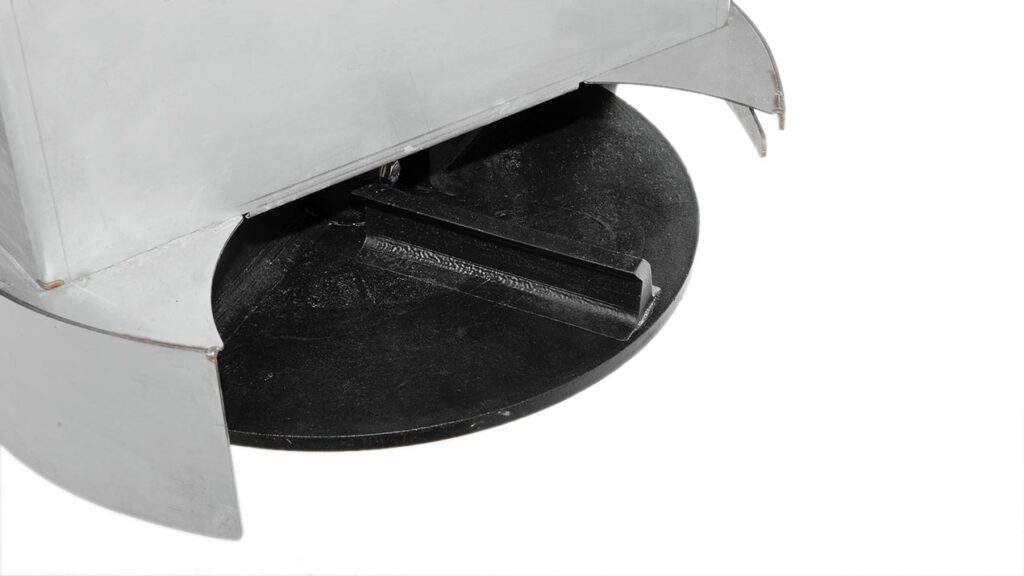

SPINNER
An extra large 15 ½” polyurethane spinner delivers a spread pattern of up to 40′ and provides long-lasting, corrosion-free performance.
SPINNER

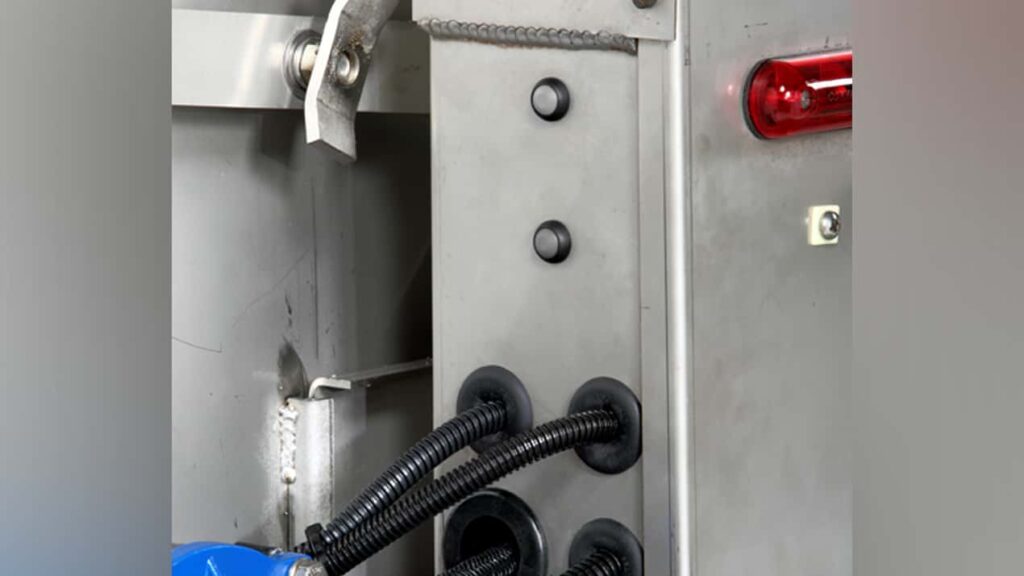

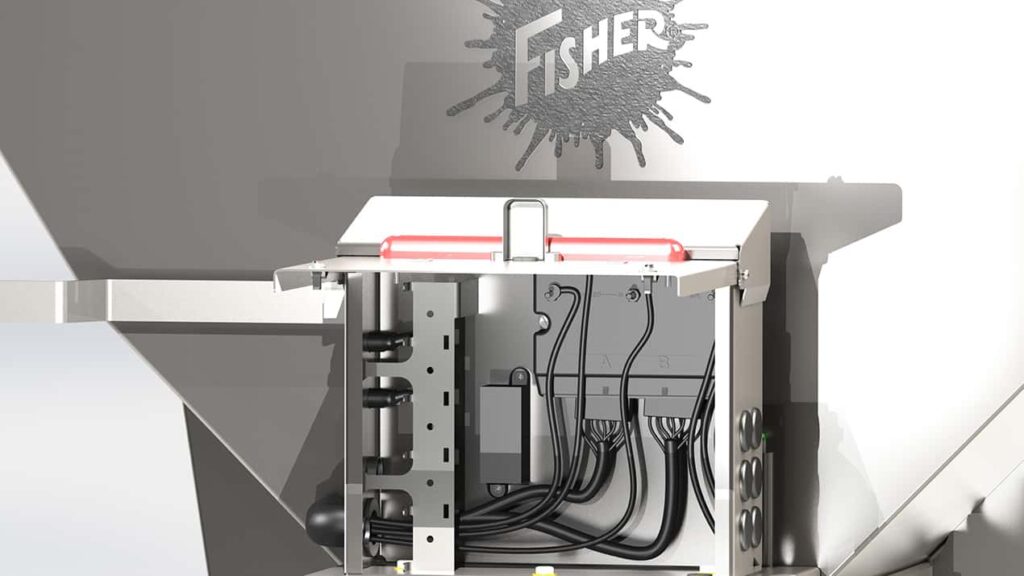

ACCESSORY INTEGRATION
Conveniently connect accessories directly into the hub mounted in the back of the hopper. Accessories automatically integrate with the hopper control without having to run additional wires from the front of the truck.
ACCESSORY INTEGRATION
DUMP & WORK LIGHT SWITCHES
Operators can safely offload material or fill walk-behind spreaders by using the rear mounted conveyor dump switches. A third switch is also provided so that an accessory work light my be conveniently controled from not only the cab but also the rear of the hopper.
DUMP & WORK LIGHT SWITCHES

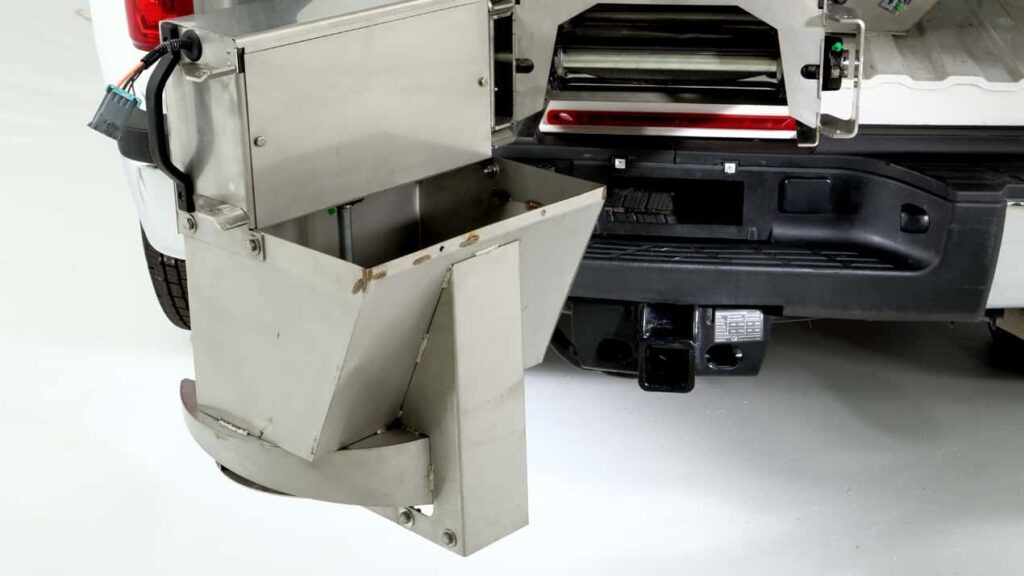

DUAL SWING CHUTE
The dual swing chute design opens from either side to provide easy access for maintenance or material unloading.
DUAL SWING CHUTE

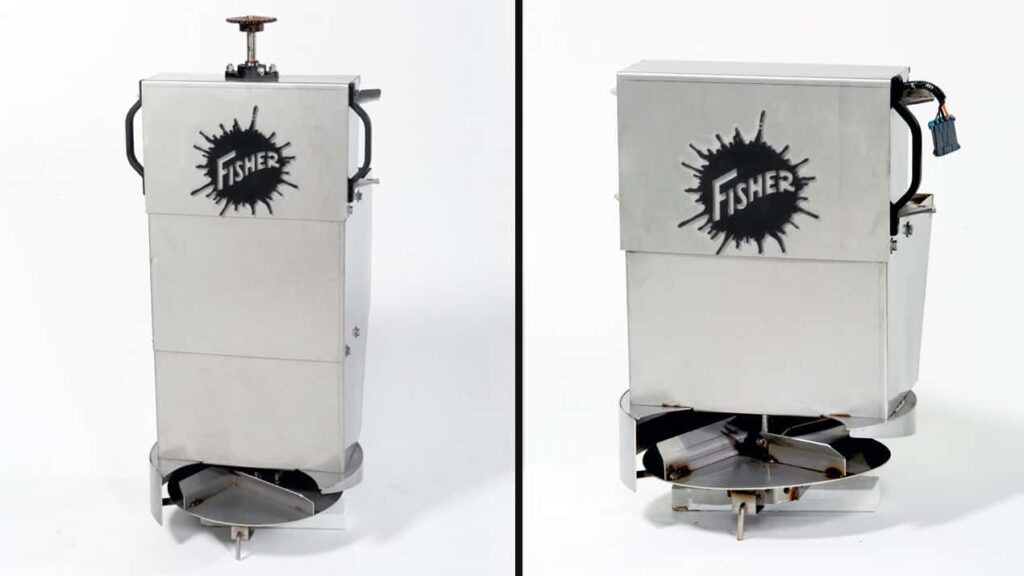

CHUTE ASSEMBLY
For precise material application, the chute assembly can be configured for either pickup truck or flatbed and dump body applications, ensuring you’re always spreading at the optimum height. An extended chute is standard on 9′ and 10′ models. An extension kit is available as an accessory only on 7′ and 8′ models.
CHUTE ASSEMBLY

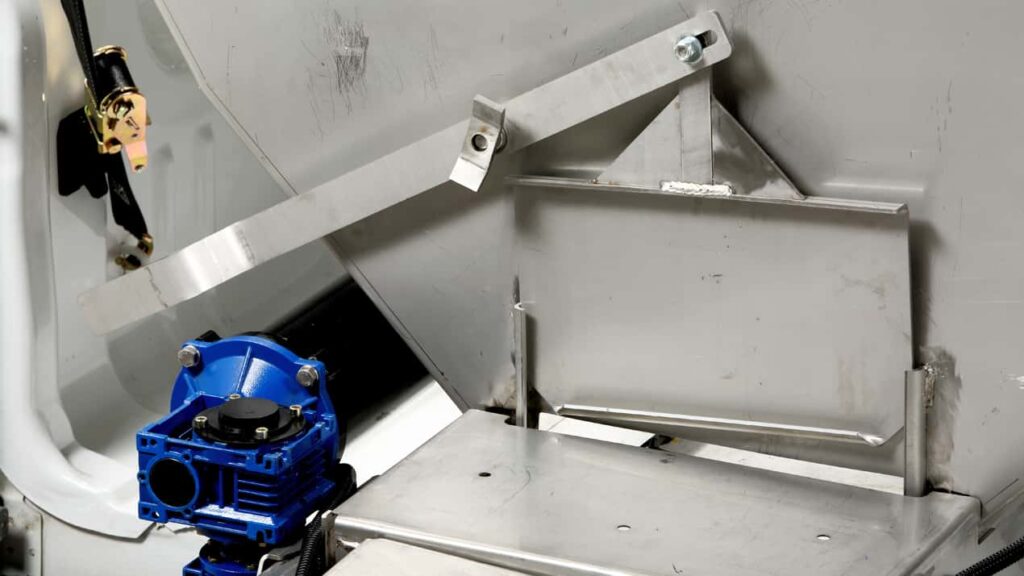

ADJUSTABLE FEED GATE
An adjustable feed gate provides additional control of material flow regardless of material type, reducing waste when traveling between sites.
ADJUSTABLE FEED GATE

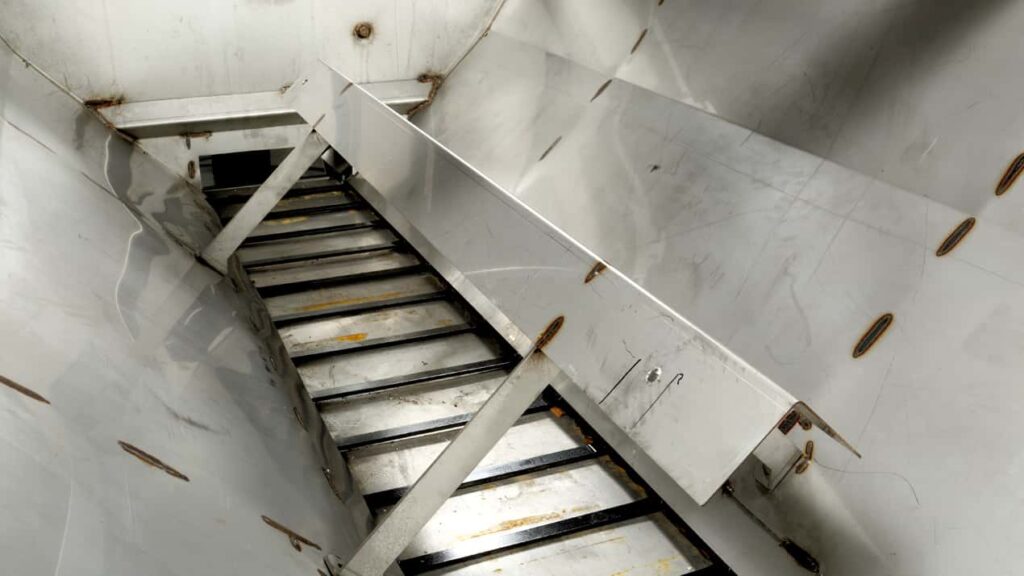

INVERTED V / VIBRATOR
An inverted V comes standard and helps keep sufficient material weight off of the conveyor, ensuring smooth startup and flow of material. A vibrator kit is available as an accessory to help reduce bridging and keep material moving smoothly to the conveyor.
INVERTED V / VIBRATOR

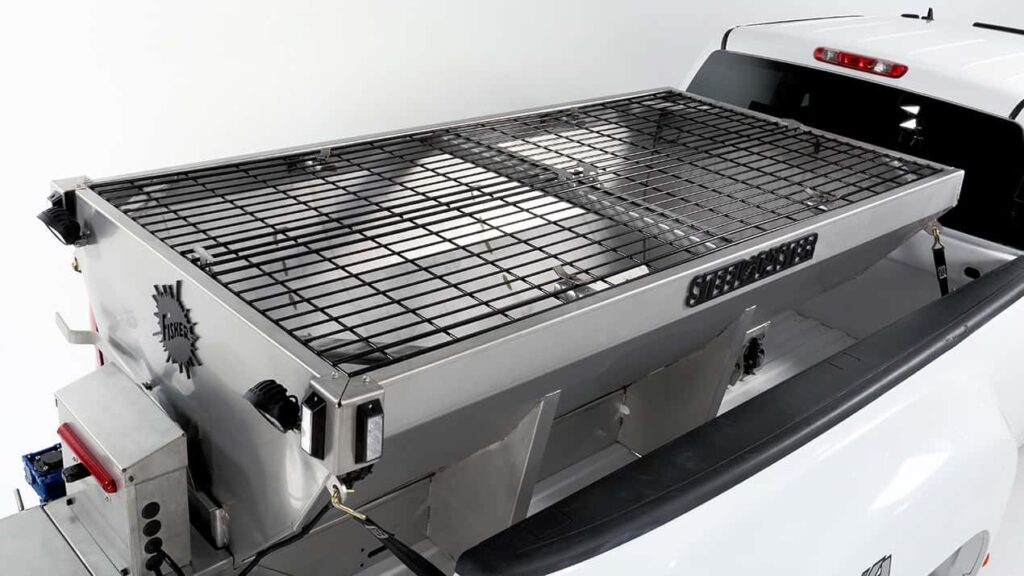

TOP SCREEN
A steel top screen comes standard, which helps break up large chunks of de-icing material during the loading process to prevent clogging and bridging during spreader operation.
TOP SCREEN

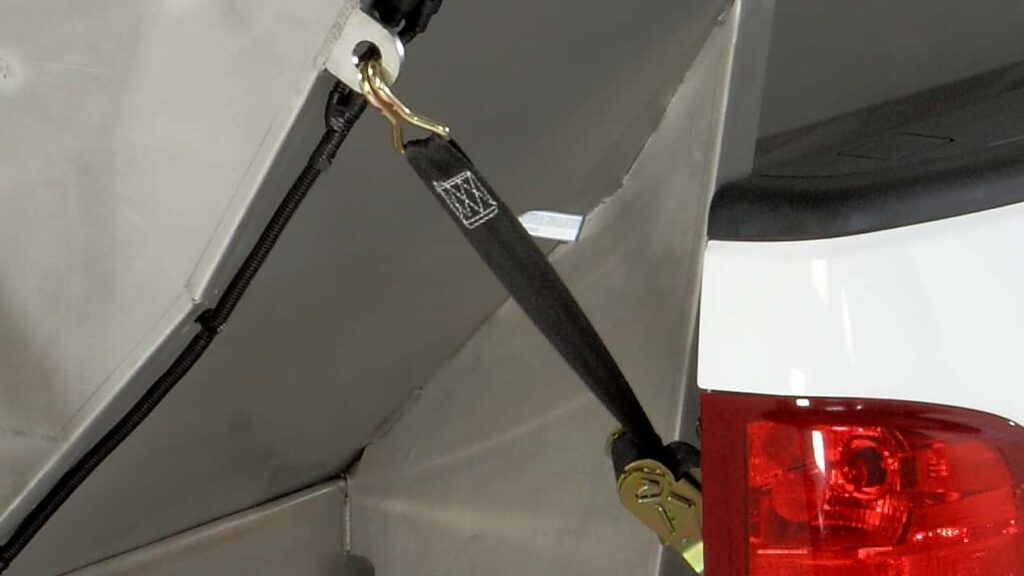

RATCHET STRAPS
Ratchet straps are provided standard for additional spreader stability. A chain tie-down kit is available as an accessory.
RATCHET STRAPS
ADDITIONAL STANDARD FEATURES
Tie-down points are included for strapping the hopper to the truck. For additional safety, bolting bars are also provided to attach the hopper to the vehicle and a Center High-Mounted Stop Light (CHMSL) is standard.
ADDITIONAL STANDARD FEATURES
FLEET FLEX
The STEEL-CASTER™ hopper spreader is designed with FLEET FLEX technology for easy interchangeability between electric hopper spreaders without having to change the wiring or the controls.
FLEET FLEX
MOUNTS
.
RATCHET STRAPS (REQUIRED/STANDARD)
Positive locking mount with bolt-down kit and ratchet-strap assist provides additional in-bed stability, security, and simplifies installation for multiple vehicle types. (Hopper spreaders require bolting to the UTV bed or truck frame for proper operator safety.)
RATCHET STRAPS (REQUIRED/STANDARD)
PRODUCT SPECIFICATIONS
.
| Model | 1.5 cu yd | 2.0 cu yd | 3.0 cu yd | 4.5 cu yd (9′) | 4.5 cu yd (10′) | 6.0 cu yd |
|---|---|---|---|---|---|---|
| Vehicle Compatibility | ¾ or 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck | ¾ or 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck | Dump Body, Flatbed, or 15,000+ GVWR Truck | Dump Body, Flatbed, or 15,000+ GVWR Truck | Dump Body, Flatbed, or 15,000+ GVWR Truck | Dump Body or Flatbed Trucks (Over 15,000 lb GVWR) |
| Material Compatibility | Bulk Salt, Bulk Sand, 50/50 Mix & Pre-Wet* | Bulk Salt, Bulk Sand, 50/50 Mix & Pre-Wet* | Bulk Salt, Bulk Sand, 50/50 Mix & Pre-Wet* | Bulk Salt, Bulk Sand, 50/50 Mix & Pre-Wet* | Bulk Salt, Bulk Sand, 50/50 Mix & Pre-Wet* | Salt, Sand & 50/50 Mix |
| Capacity | 1.5 cu yd | 2.0 cu yd | 3.0 cu yd | 4.5 cu yd | 4.5 cu yd | 6.0 cu yd |
| Spreading Width | Up to 40′ | Up to 40′ | Up to 40′ | Up to 40′ | Up to 40′ | Up to 40′ |
| Approx. Weight (Empty) | Dual 12V DC Sealed Motors (595 lb) | Dual 12V DC Sealed Motors (615 lb) Dual Hydraulic Motors (615 lb) | Dual 12V DC Sealed Motors (695 lb) Dual Hydraulic Motors (695 lb) | Dual 12V DC Sealed Motors (815 lb) Dual Hydraulic Motors (815 lb) | Dual Hydraulic Motors (840 lb) | Dual Hydraulic Motors (885 lb) |
| Overall Dimensions (LxWxH) | 105″ x 50″ x 51″ | 105″ x 50″ x 51″ | 129″ x 50″ x 70 ½” | 129″ x 70″ x 74 ¾” | 141″ x 70″ x 74 ¾” | 141″ x 70″ x 82 ¼” |
| Hopper Dimensions (LxWxH) | 84″ x 50″ x 33 ¼” | 96″ x 50″ x 33 ¼” | 108″ x 50″ x 40 ¾ | 108″ x 70″ x 45″ | 119″ x 70″ x 45″ | 119″ x 70″ x 52 ½” |
| Body Side Length | 7′ | 8′ | 9′ | 9′ | 10′ | 10′ |
| Min. Bed Length Required | 62 ½” | 74 ½” | 91″ | 91″ | 102″ | 102″ |
| Hopper Construction | 16 ga SS | 16 ga SS | 16 ga SS | 16 ga SS | 16 ga SS | 16 ga SS |
| Conveyor Width | 15 ½” | 15 ½” | 15 ½” | 15 ½” | 15 ½” | 15 ½” |
| Spinner Size | 15 ½” | 15 ½” | 15 ½” | 15 ½” | 15 ½” | 15 ½” |
